Buffet in clean white design with undercounter induction

Buffet in clean white design with undercounter induction

Keep food warm with invisible technology

InductWarm 130+ undercounter induction unit

InductWarm® 130+ GN 2/3 Device

Dimensions: 350 x 350 x 110 mm
With four power levels
Max. power: 800 W
Input voltage range: 110/230 V AC / 50/60 Hz

Operation- and Installation Manual

Innovative undercounter solution for your buffet

Invisibly installed undercounter induction unitDynamic Power Control feature

Keep food warm with invisible technology from Gastros Switzerland. The InductWarm® 130+ module can be installed underneath countertops made from various materials. Therefore, it is the perfect comination of innovative technology and elegante surfaces - for a maximum of individuality and design flexibility.

Keep food warm with invisible technology

The induction module, which is located under the counter´s surface, keeps food warm on four different power levels between 40°C and 95°C. Any inductive dishes can be used with this technology. The heat is generated directly on the inside of the dish with the help of induction currents. The countertop itself will not be heated up directly. When you remove the dishes from the surface, you will be left with an elegant looking, multifunctional counter - easy to clean and instantly ready to be used for other purposes (e.g. as conference table, candy or cake bar etc.).

User-friendly and energy-efficient

The induction unit is operated by an external control panel or an infrared remote control. LED lights visualize the current operation status at any time. Thanks to the low power consumption, a single 230V / 16A power outlet provides enough energy to run up to three devices. And still each module can be operated individually. It is also possible to link up to 16 units with each other and control them by only one single controlling device.

The InductWarm® 130+ unit is equipped with the unique DPC (Dynamic Power Control) system. DPC detects the inductive parameters of the vessel and automatically controls the power stage. With this software-controlled feature, the InductWarm® porcelain can be warmed as well as a massive cast-iron pot.

Multifunctional counters with individual design

Whether artificial stone, glass or wood – to cover the InductWarm® undercounter system you can choose a material matching your interior design. This means, you are completely free in designing your buffet furniture according to your wishes and individual needs. The induction technology, that will keep the food warm, remains fully invisible.

Undercounter induction units covered with artificial stone

Cover material artificial stone

Surfaces made from (artificial) stone are user-friendly and they are captivating due to their premium look. Generally, we recommend to NOT USE natural stone as a cover material for the InductWarm® 130+ system. Instead, there are numerous kinds of artificial stone that can be used. ATTENTION: Stone and also artificial stone expands when it is warmed and this can cause tension cracks. It is recommended to use an immediate silicone joint for the possible extension of the surface. Please watch out the installation manual.

Gastros can give advice for the choice of cover material but assumes no liability in case of cover material damages.

Download Cover Guidelines (PDF)

Undercounter induction units covered with glass

Cover Material Glass

Glass is giving your buffet counter an elegant look with a special gloss and it can be cleaned easily. Our recommendation is to use scratch-resistan ESG glass with a thickness of 20 mm and rounded edges. The material can be coloured in almost any RAL-color. Also logos can be added. We would be glad to assist you with your choice and can provide you with a list of glass specifications.

Undercounter induction units covered with wood

Cover material wood

Buffet counters made from wood are timeless and match any interior design from classic elegance to rustic-styles. The material radiates visual warmth and a sense of liveliness. It is technically no problem to use wood as cover material for the InductWarm® 130+ system. But please, keep ATTENTION: Do not use painted, varnished or glued wood, use only oiled natural wood. Furthermore, humidity and/or dryness can cause fine cracks of the wood.

Overview tested materials

Gastros is constantly testing new materials from various providers and the list is being revised.

Comments
AriosteaSeveral samples of Ariostea have been tested and approved. Use 20mm of thickness. Please let us know your specific choice of cover material so that we can check it if necessary.
More details about the material: www.ariostea-high-tech.com

BelencoGastros does NOT recommend to use Belenco with its systems.
Heat test ended with color change and bubbles on the surface.
CaesarstoneSeveral samples of Caesarstone have been tested. Use ONLY in combination with silicon pads. Use 20mm of thickness. Please let us know your specific choice of cover material so that we can check it if necessary.
More details about the material: www.caesarstone.com

CorianGastros does NOT recommend to use Corian with its systems.
The polymethylmetacrylit (PMMA) is not heat resistant and will melt/change color.
DektonGastros does NOT recommend to use Dekton with its systems. As Dekton is an extremely hard material there is high risk of tension cracks.
FondovalleGastros does NOT recommend to use Fondovalle with its systems.
FriatecSeveral samples of Fridurit have been tested and approved. Use 11mm of thickness. Please let us know your specific choice of cover material so that we can check it if necessary.
More details about the material: www.aliaxis.de

LaminamSeveral samples of Laminam have been tested and approved. Use 20mm of thickness. Please let us know your specific choice of cover material so that we can check it if necessary.
More details about the material: www.laminam.com

Lapitec®Several samples of Lapitec® have been tested and approved. Use 20mm of thickness. Please let us know your specific choice of cover material so that we can check it if necessary.
More details about the material: www.lapitec.com
NeolithSeveral samples of Neolith have been tested. Use ONLY in combination with silicon pads (like specified by the manufacturer). Use 20mm of thickness. Please let us know your specific choice of cover material so that we can check it if necessary.
More details about the material: www.neolith.com

SapienStoneGastros does NOT recommend to use SapienStone with its systems.
Sensa naturestone
(by Cosentino)
Gastros generally does NOT recommend to use any natural stone with its systems.
SilestoneSeveral samples of Silestone have been tested. Use ONLY in combination with silicon pads. The tests resulted in discoloration of the material. Mechanical tests passed. Please let us know your specific choice of cover material so that we can check it if necessary.

Optional Accessories

Control panel for undercounter induction unit

External control unit

The InductWarm® 130+ can be controlled via an optional external control unit on four temperature levels. This allows a use from the buffet side.

Remote control for undercounter induction unit

Infrared remote control

Using the optional infrared remote control the activation is also possible. The power levels 1-4 can be controlled with the current button on the remote control.

Mounting kit for undercounter induction unit

Mounting kit

The optional mounting kit makes a simple mounting of the device under the counter or table possible.

Connecting cable for undercounter induction unit

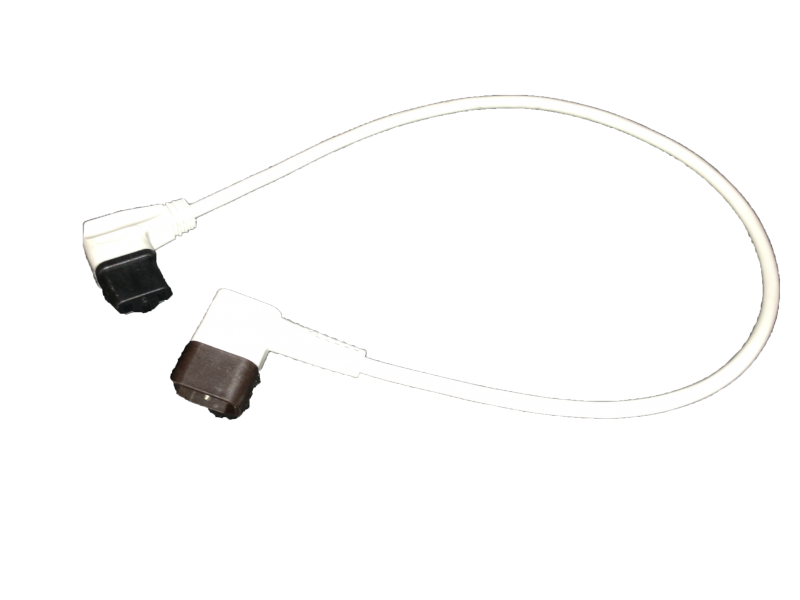

Connecting cable

When choosing from our InductWarm® 130+, you have a choice of the arrangement and number of the InductWarm® elements. Up to three devices can be easily connected via the connecting cable with each other for giving you the exact level of versatility that you require.

Winner of the Tophotel STAR Awards - Category Flexibility

Tophotel star award for undercounter induction unit
